自行車頭碗組

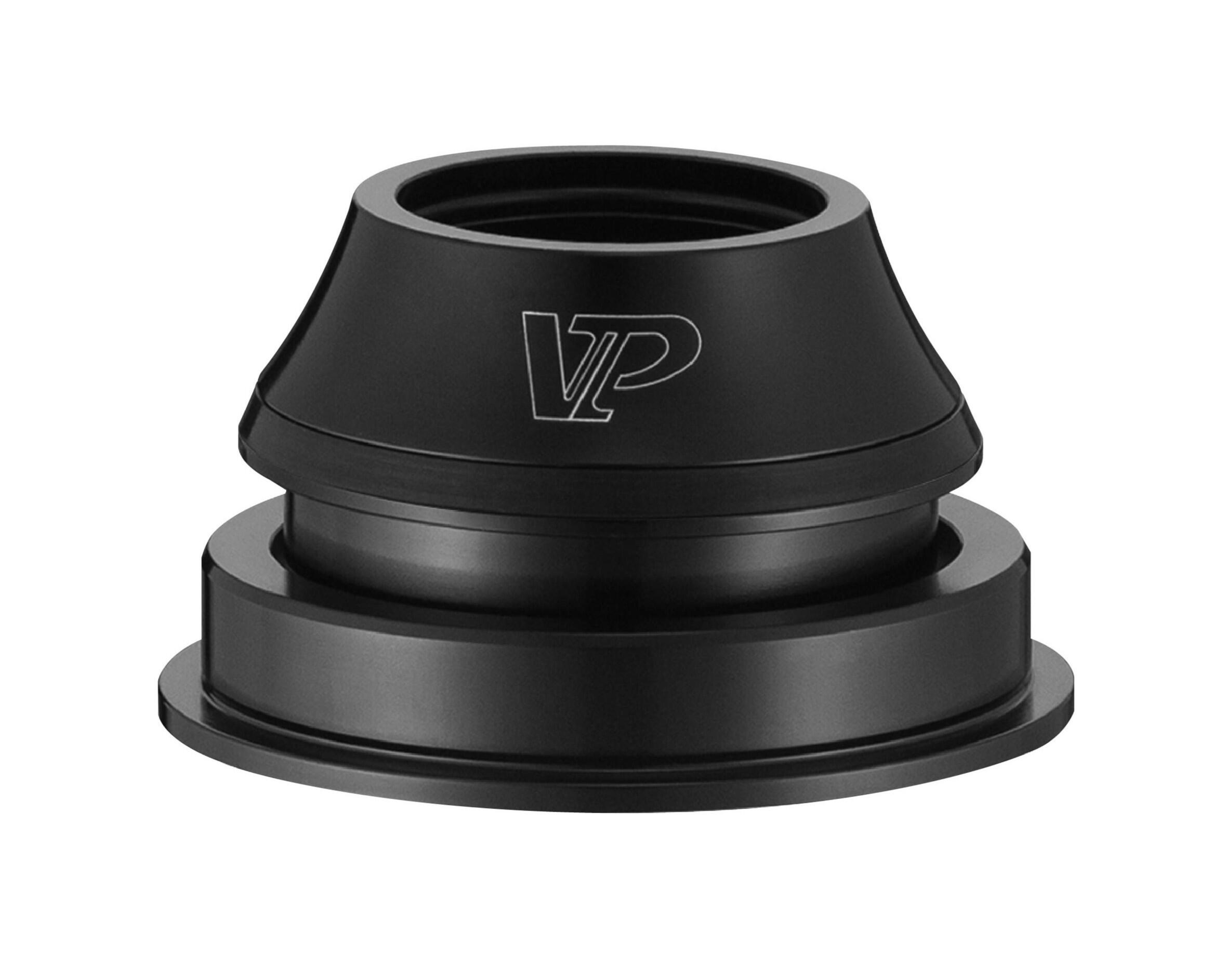

ZS56/28.6 | ZS56/30

1-1/8''.
Recycled plastic cover.
ED black.
Ø28.6 / Ø56 / Ø30

ZS44/28.6 | ZS56/39.8

1-1/8" upper + 1-1/2" lower.
Ø28.6 / Ø44 - Ø56 / Ø39.8
Sealed bearing (MH-P03/P16)

ZS56/28.6 | ZS56/39.7

1-1/8" upper + 1-1/2" lower
Ø28.6 / Ø56 / Ø39.8
Sealed bearing (P16)

ZS44/28.6 | ZS44/30

• Ø28.6 / Ø44 / Ø30
• Caged (5/32” x 22A).
• 1-1/8”

ZS41.4/28.6 | ZS41.4/30

• Ø28.6 / Ø41.4 / Ø30
• Sealed bearing (MH-P04)
• 1-1/8”

ZS44/28.6 | ZS44/30

• Ø28.6 / Ø44 / Ø30
• Sealed bearing (MH-P03)
• 1-1/8”

ZS44/28.6 | ZS55/39.8

• Ø28.6 / Ø44 - Ø56 / Ø39.8
• Caged (5/32” x 22A / 3/16” x 23A).
• 1-1/8” upper + 1-1/2“ lower. Material:
  Recycled aluminum cover, steel cups.

ZS44/28.6 | ZS55/39.8

• Ø28.6 / Ø44 - Ø55 / Ø39.8
• Caged (5/32” x 22A / 3/16” x 23A)
• 1-1/8” upper + 1-1/2“ lower

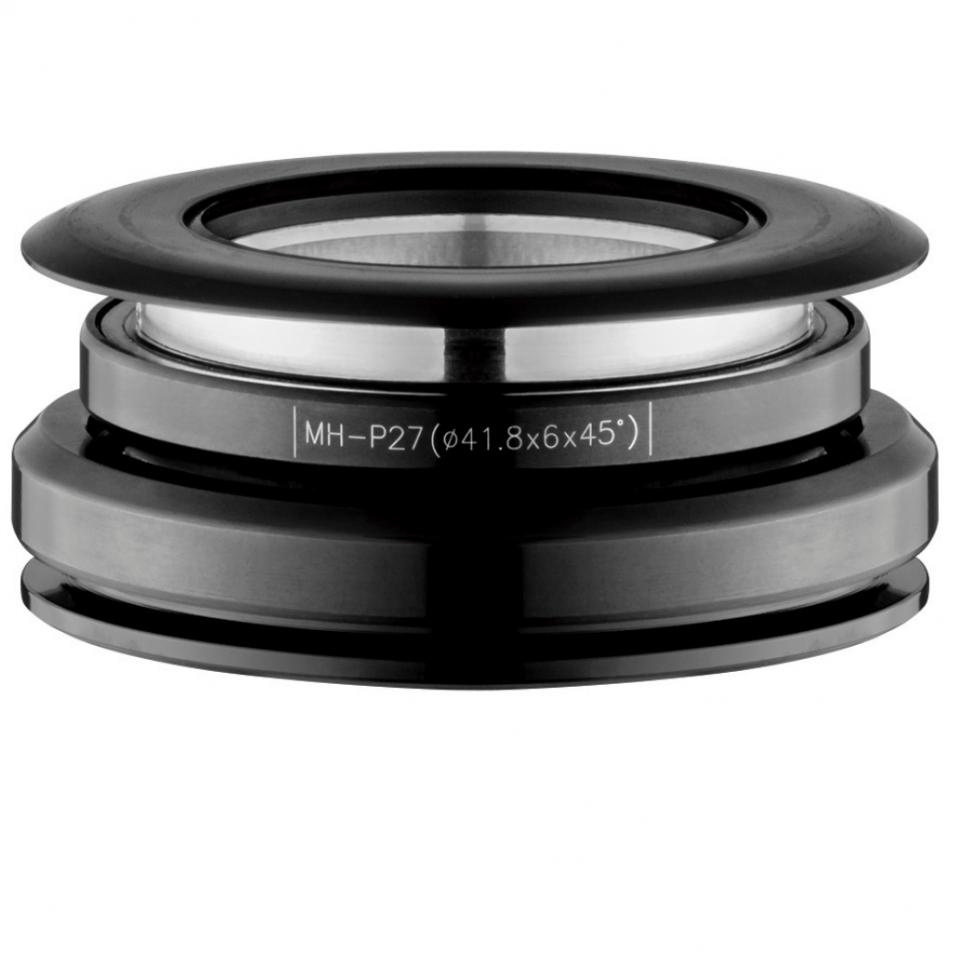

ZS44/31.8 | ZS56/39.8

• Ø31.8 / Ø44 - Ø56 / Ø39.8
• Sealed bearing (MH-P27 / P16)
• 1-1/4” upper + 1-1/2” lower

ZS44/28.6 | ZS50.6/33

• Ø28.6 / Ø44 - Ø50.6 / Ø33
• Sealed bearing (MH-P03 / P22)
• 1-1/8” upper + 1-1/4” lower

ZS49.7/28.6 | ZS49.7/30

• Ø28.6 / Ø49.7 / Ø30
• Sealed bearing (MH-P03)
• 1-1/8”

• Ø28.6 / Ø56 / Ø39.8
• Semi cartridge (MH-P37).
• 1-1/8” upper + 1-1/2“ lower

ZS44/28.6 | ZS44/30

• Ø28.6 / Ø44 / Ø30
• Sealed bearing (MH-P03)
• 1-1/8”

ZS44/28.6 | ZS56/39.8

• Ø28.6 / Ø44 - Ø56 / Ø39.8
• Sealed bearing (MHP03 / P16)
• 1-1/8” upper + 1-1/2” lower

• Ø28.6 / Ø41.8 - Ø52 / Ø39.8
• Sealed bearing (MH-P08 / P22)
• 1-1/8” upper +1-1/2” lower

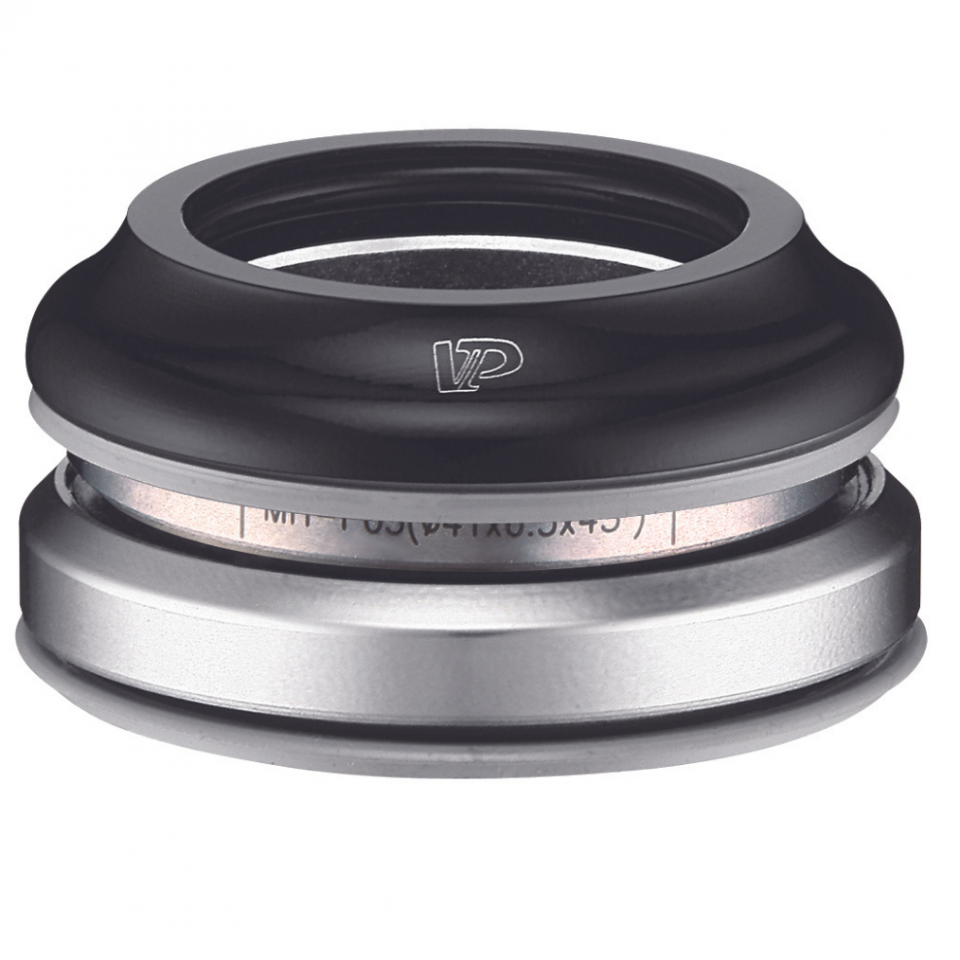

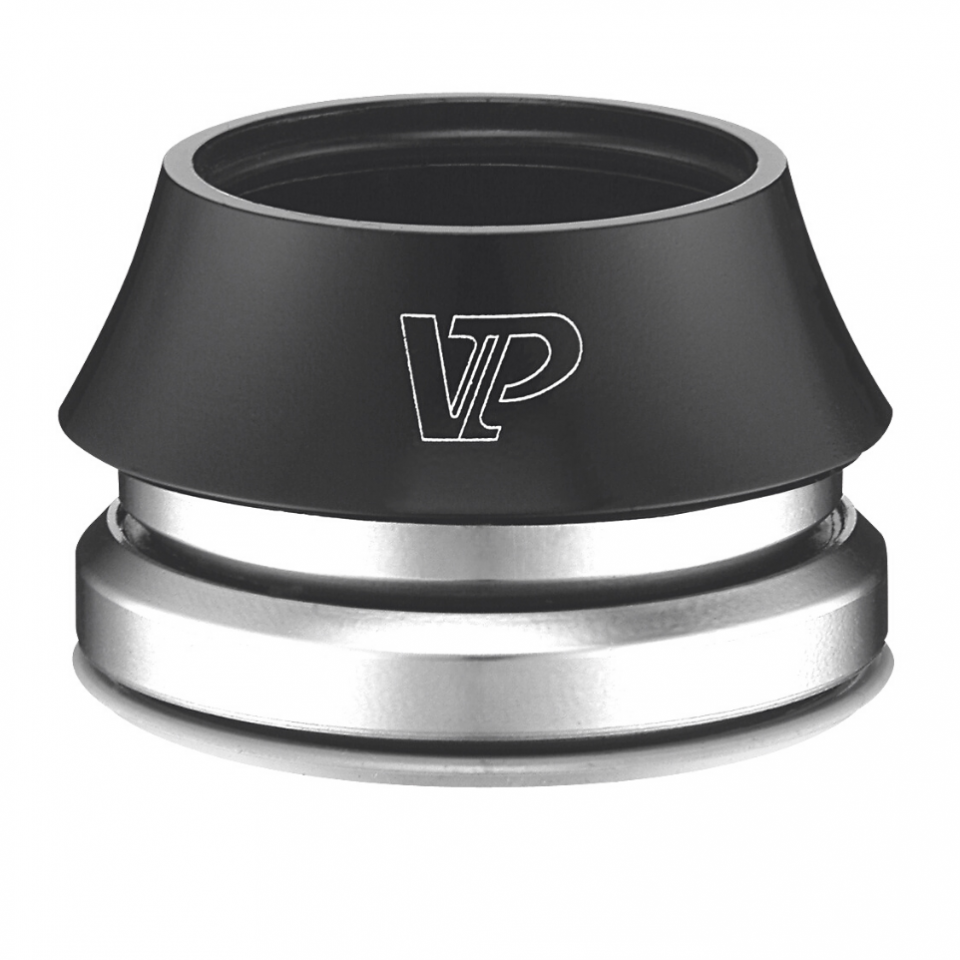

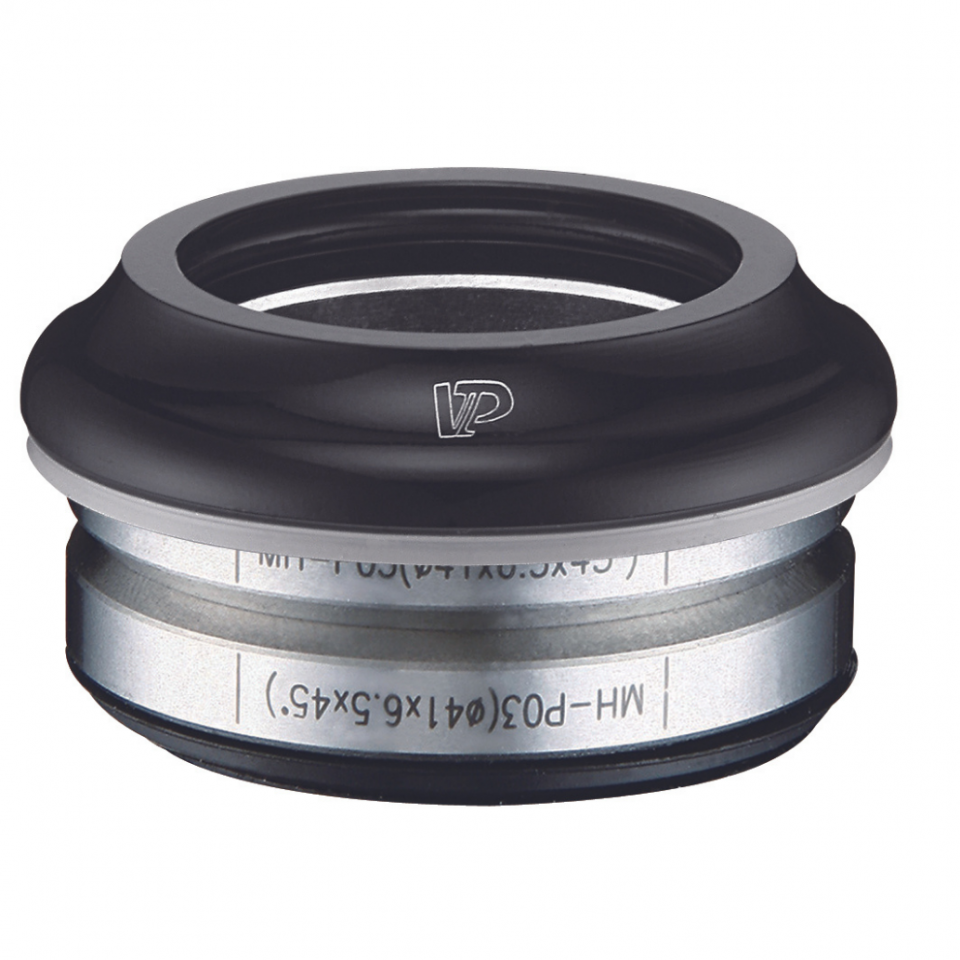

IS41/28.6 | IS41/30

• Ø28.6 / Ø41 / Ø30
• Sealed bearing (MH-P03)
• 1-1/8”

IS41.8/28.6 | IS41.8/30

• Ø28.6 / Ø41.8 / Ø30
• Sealed bearing (MH-P08)
• 1-1/8”

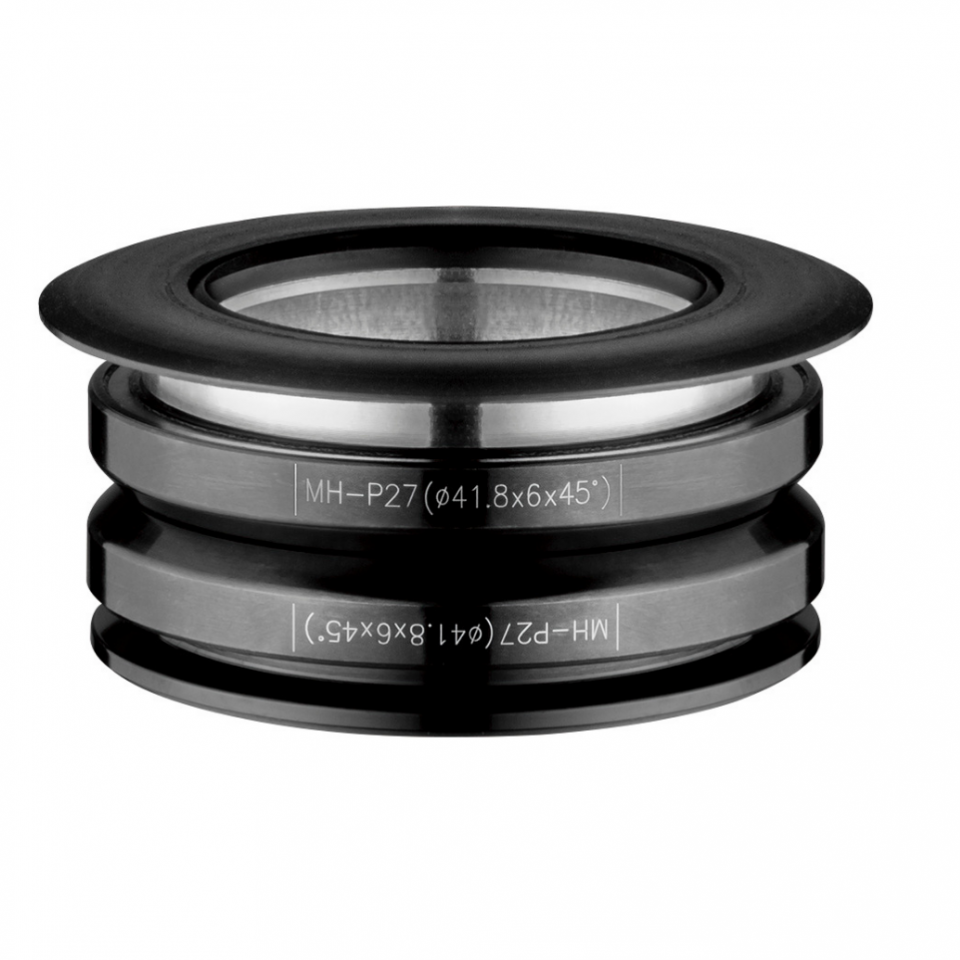

IS41.8/31.8 | IS46.9/33

• Ø31.8 / Ø41.8 - Ø46.9 / Ø33
• Sealed bearing (MH-P27 / P22)
• 1-1/4”

IS41.8/28.6 | IS46.9/33

• Ø28.6 / Ø41.8 - Ø46.9 / Ø33
• Sealed bearing (MH-P08 / P22)
• 1-1/8” upper + 1-1/4” lower

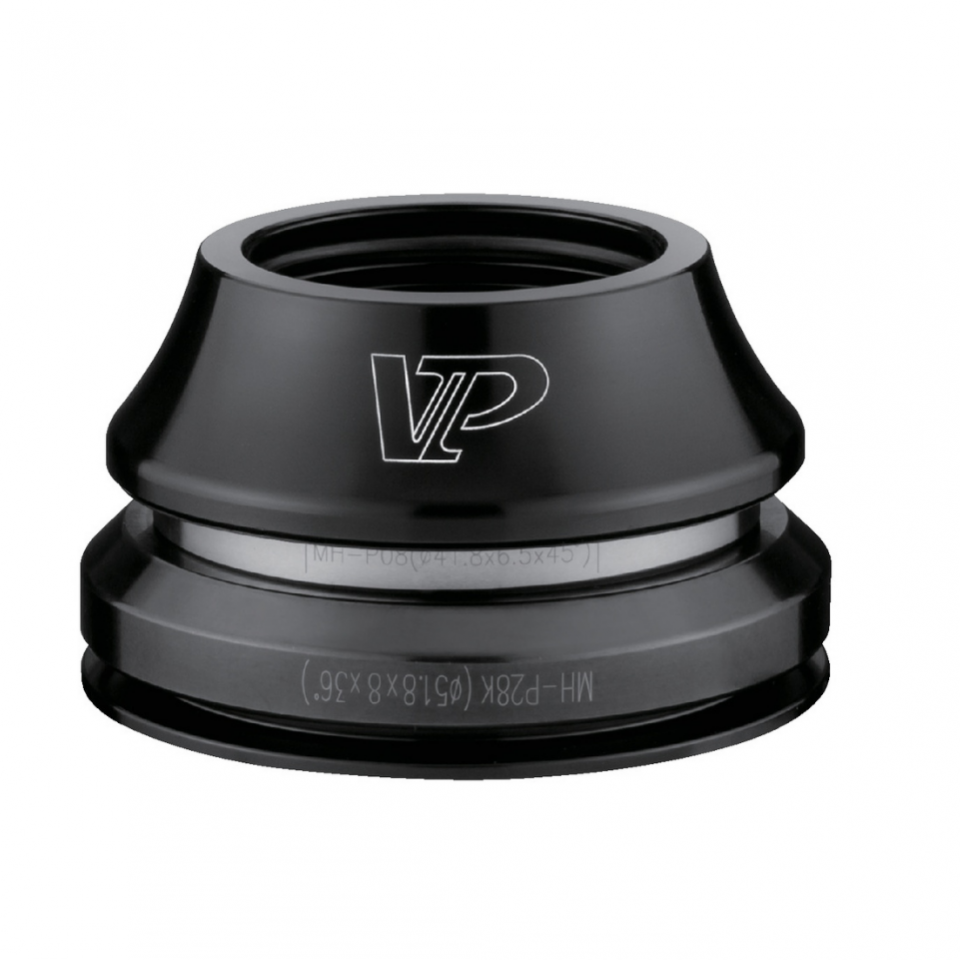

IS41.8/28.6 | IS51.8/39.8

• Ø28.6 / Ø41.8 - 51.8 / Ø39.8
• sealed bearing (MH-P08 / P28K)
• 1-1/8” upper + 1-1/2” lower

IS41.8/31.8 | IS52/39.8

• Ø31.8 / Ø41.8 - Ø52 / Ø39.8
• Sealed bearing (MH-P27 / P25)
• 1-1/4” upper + 1-1/2” lower

IS41.8/28.6 | IS52/39.8

• Ø28.6 / Ø41.8 - Ø52 / Ø39.8
• Sealed bearing (MH-P08 / P16)
• 1-1/8” upper +1-1/2” lower

IS41/28.6 | IS46.9/33

• Ø28.6 / Ø41 - Ø46.9 / Ø33
• Sealed bearing (MH-P03 / P22)
• 1-1/8” upper + 1-1/4” lower

IS41.8/25.4 | IS41.8/27or26.4

• Ø25.4 / Ø41.8 / Ø27 or Ø26.4
• Sealed bearing (MH-P09K)
• 1”

EC34/28.6 | EC34/30

• Ø28.6 / Ø34 / Ø30
• Sealed bearing (MH-P03)
• 1-1/8”

EC34/28.6 | EC34/30

• Ø28.6 / Ø34 / Ø30
• Caged (5/32” x 20A)
• 1-1/8”

EC49.7/38.1 | EC49.7/39.8

• Ø38.1 / Ø49.7 / Ø39.8
• Sealed bearing (MH-P25)
• 1-1/2”

IS41.8/25.4- 26tpi | IS41.8/30

• Ø25.4 / Ø41.8 / Ø30
• Sealed bearing (MH-P08F)
• 1-1/8” x 26 TPI

EC34/28.6 | EC34/30

• Ø28.6 / Ø34 / Ø30
• Caged, (5/32” x 22A / 1/4”x15B) 10 pc(TW)
• 1-1/8”

EC34/28.6 | EC34/30

• Ø28.6 / Ø34 / Ø30
• Caged (5/32” x 22A)
• 1-1/8”

EC34/28.6 | EC34/30

• Ø28.6 / Ø34 / Ø30
• Semi-cartridge (1/8” x 25B)
• 1-1/8”

EC34/28.6 | EC34/30

• Ø28.6 / Ø34 / Ø30
• Caged (5/32” x 20A)
• 1-1/8”

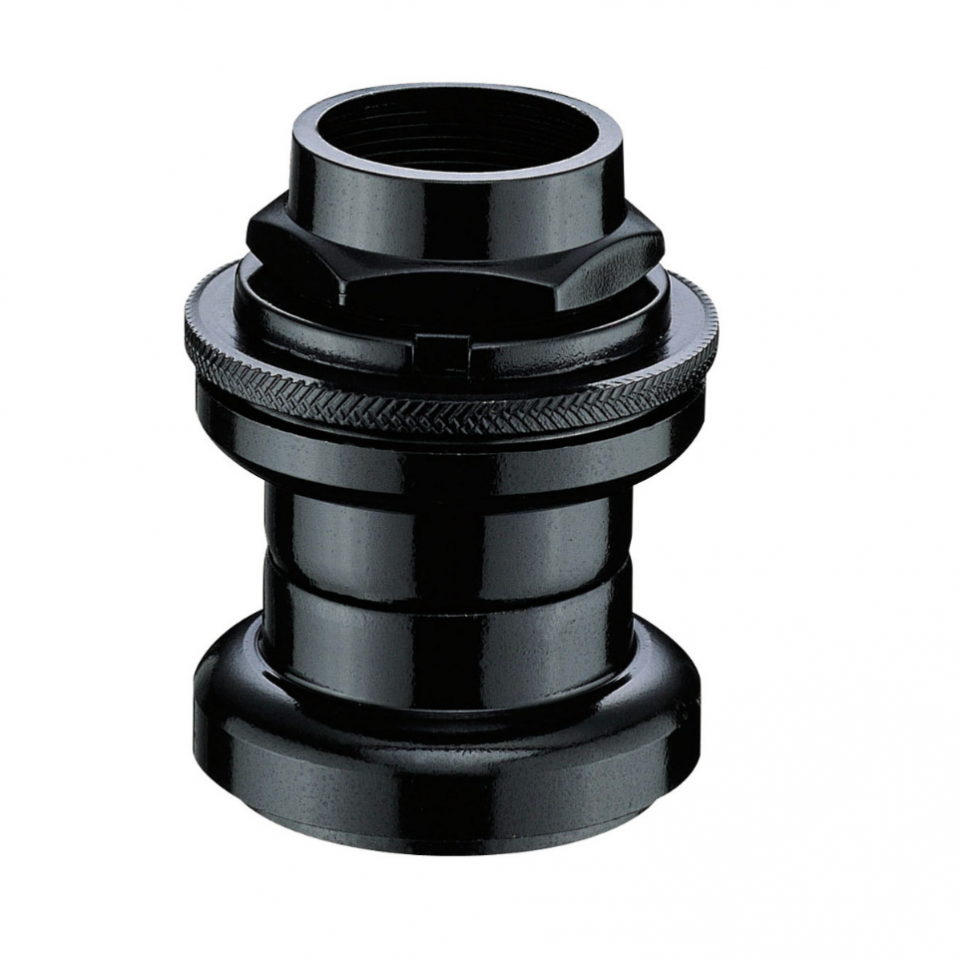

ZS44/25.4- 26tpi | ZS44/30

• Ø25.4 / Ø44 / Ø30
• Semi-cartridge (MH-P12)
• 1-1/8” x 26 TPI

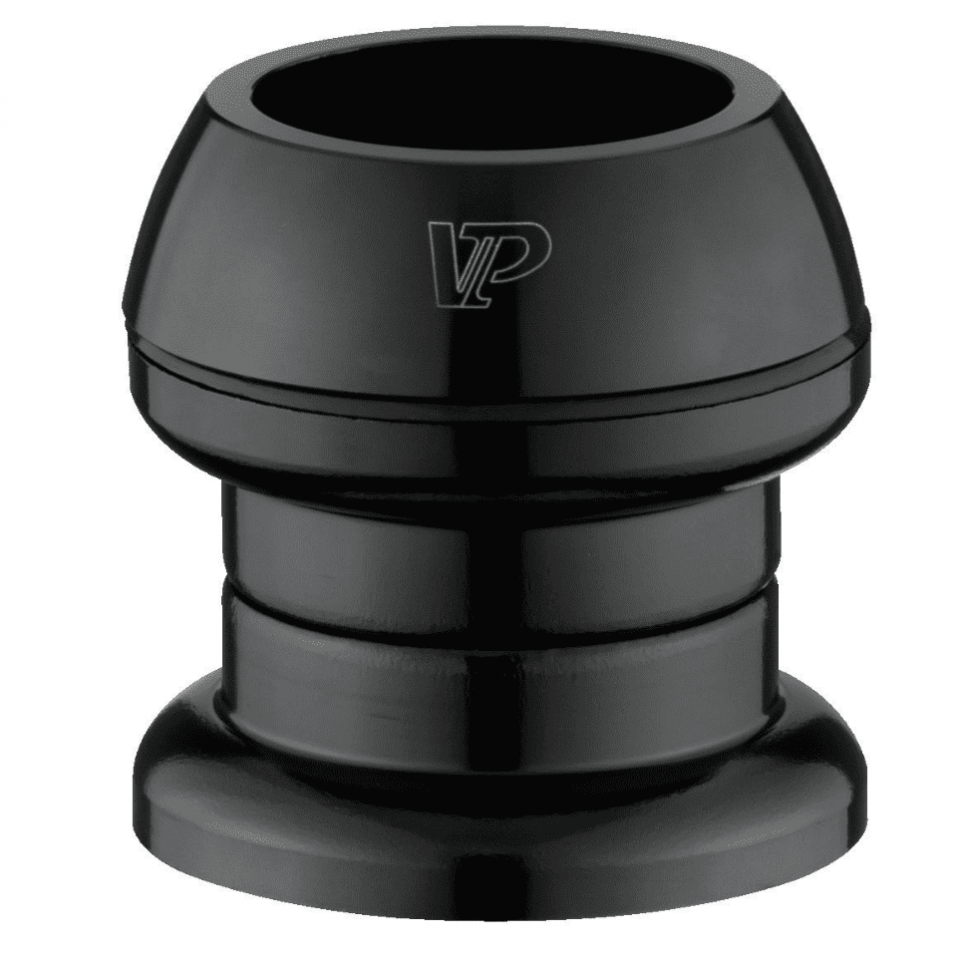

EC34/25.4- 26tpi | EC34/30

• Ø25.4 / Ø34 / Ø30
• Caged (5/32” x 20A)

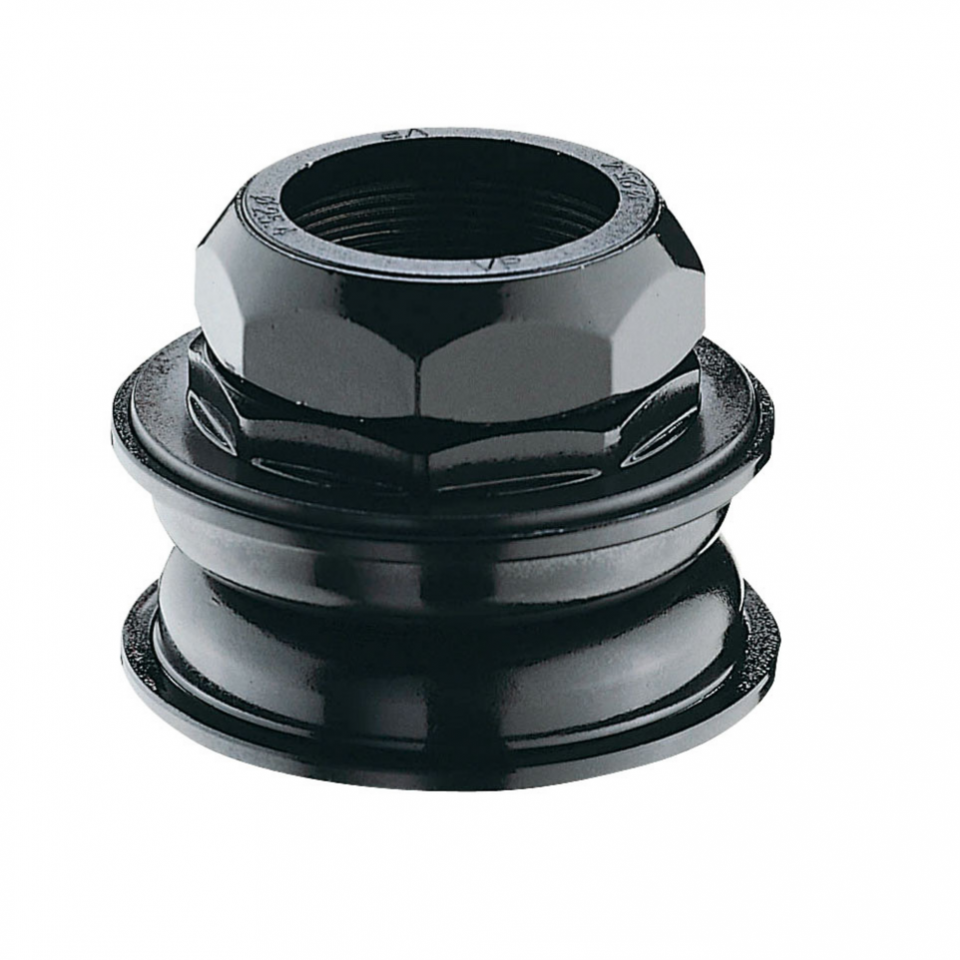

• BC1-1/8” x 26 TPI. Steel. ED black or CP

• Ø22.2 / Ø30 / Ø27
• Recycled aluminum.
  Anodized black or silver

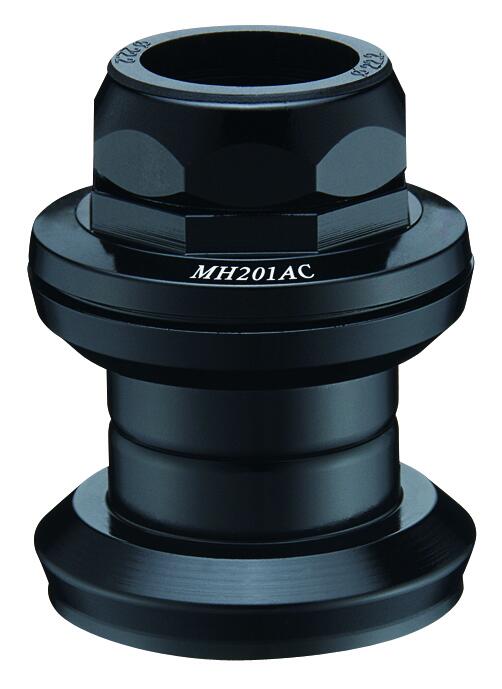

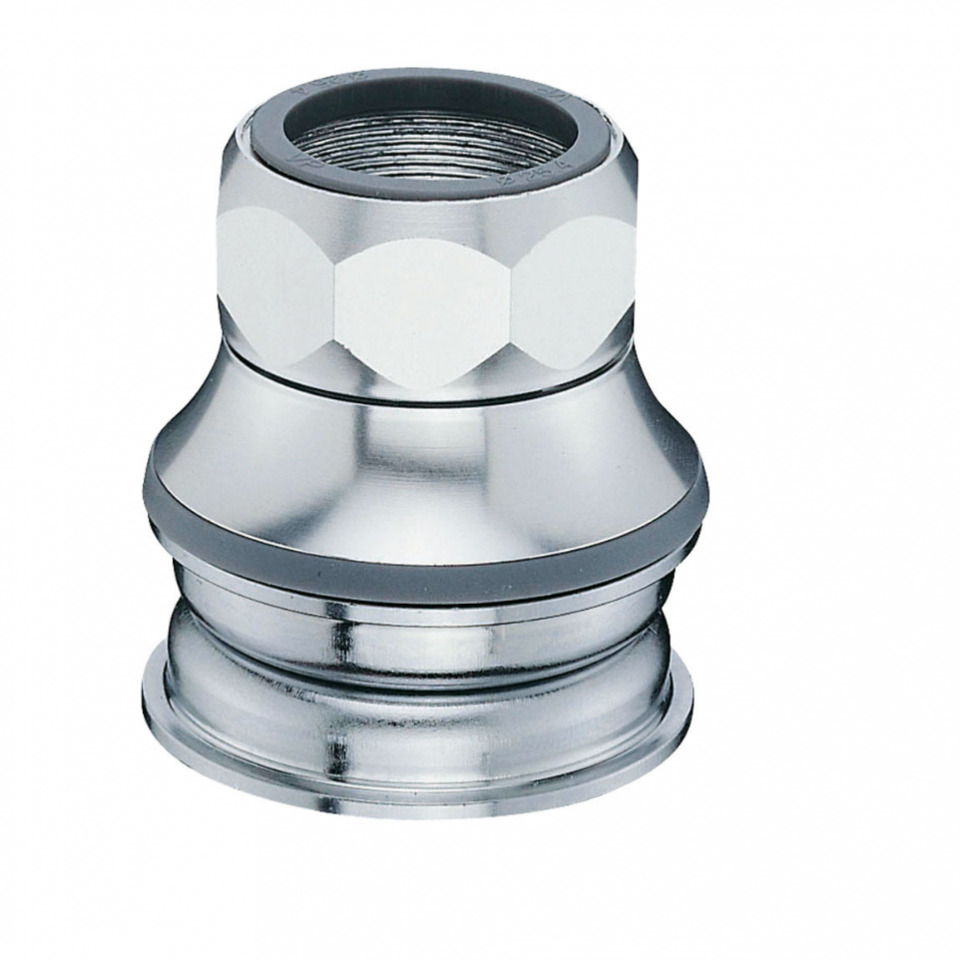

EC30/22.2- 24tpi | EC30/27

• Ø22.2 / Ø30 / Ø27
• Caged (5/32” x 16)
• BC1” x 24 TPI

ZS44/25.4- 26tpi | ZS44/30

• Ø25.4 / Ø44 / Ø30
• Caged (5/32” x 22A)
• BC1-1/8” x 26 TPI

ZS44/28.6 | ZS44/30

• Ø28.6 / Ø44 / Ø30.
• Semi-cartridge bearing (MH-P03M)
• 1-1/8”

IS41.8/28.6 | IS41.8/30

• Ø28.6 / Ø41.8 / Ø30mm
• Sealed bearing
• 1-1/8” or 1” upper 1-1/4” lower

IS41.8/28.6 | IS49/39.8

• Ø28.6 / Ø41.8 - Ø49 / Ø39.8
• Sealed bearing (MH-P27 / P61)
• 1-1/8” or 1-1/8”upper 1-1/2”lower

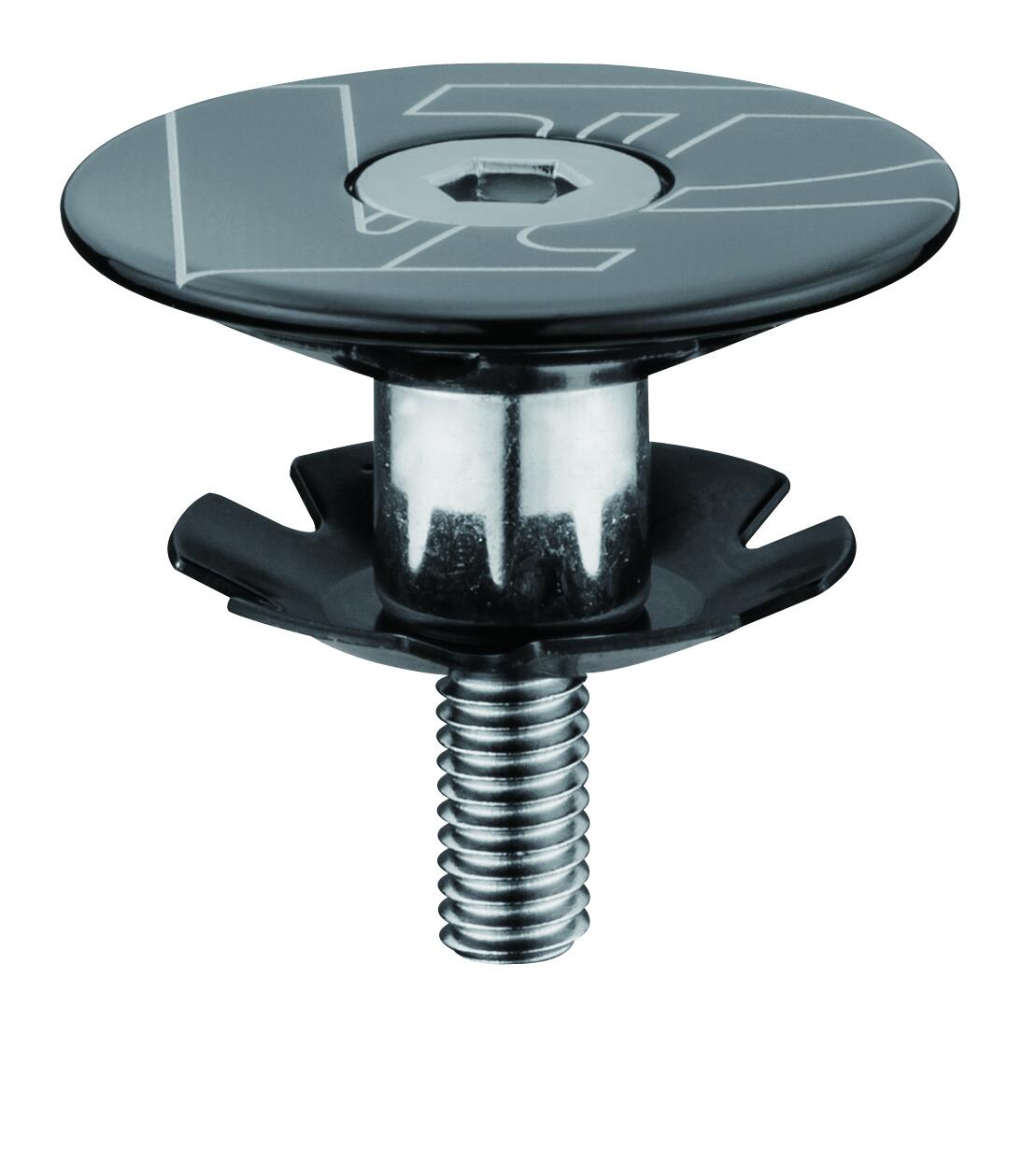

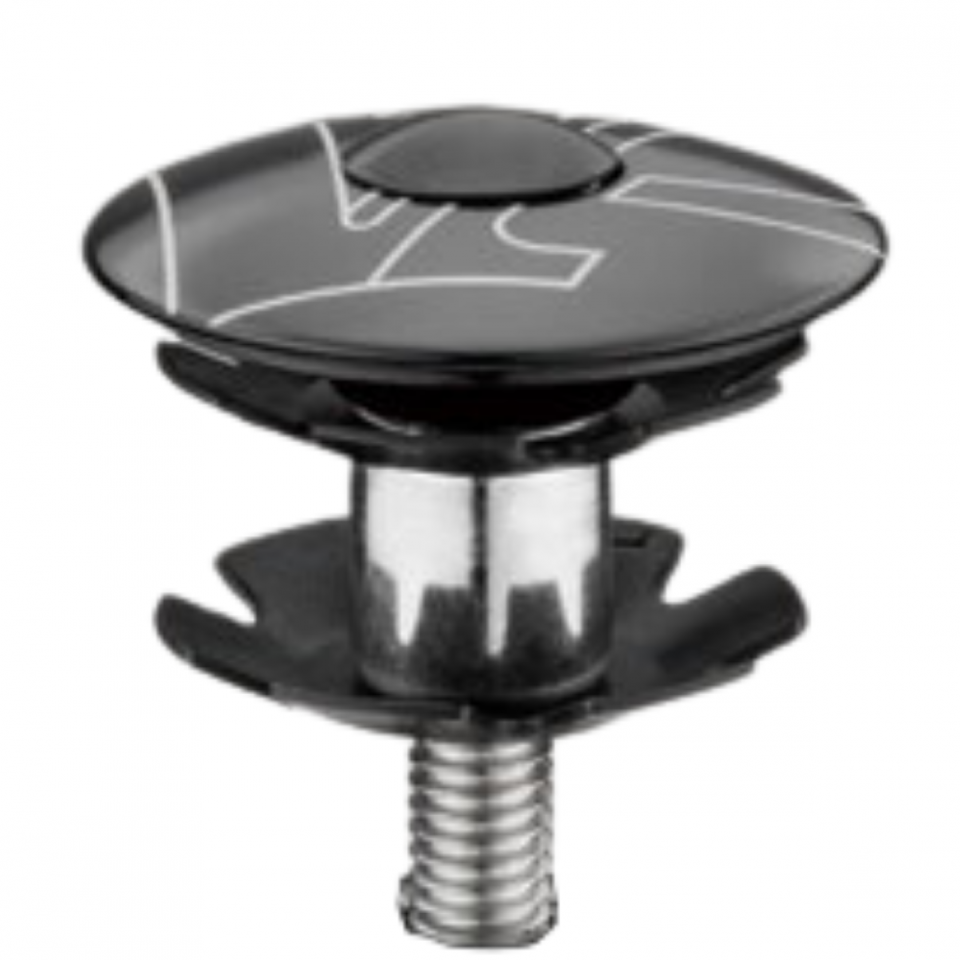

Forged alloy top cap, w/bolts and star nut.

• 1-1/8
• 25.4
• double star-nut

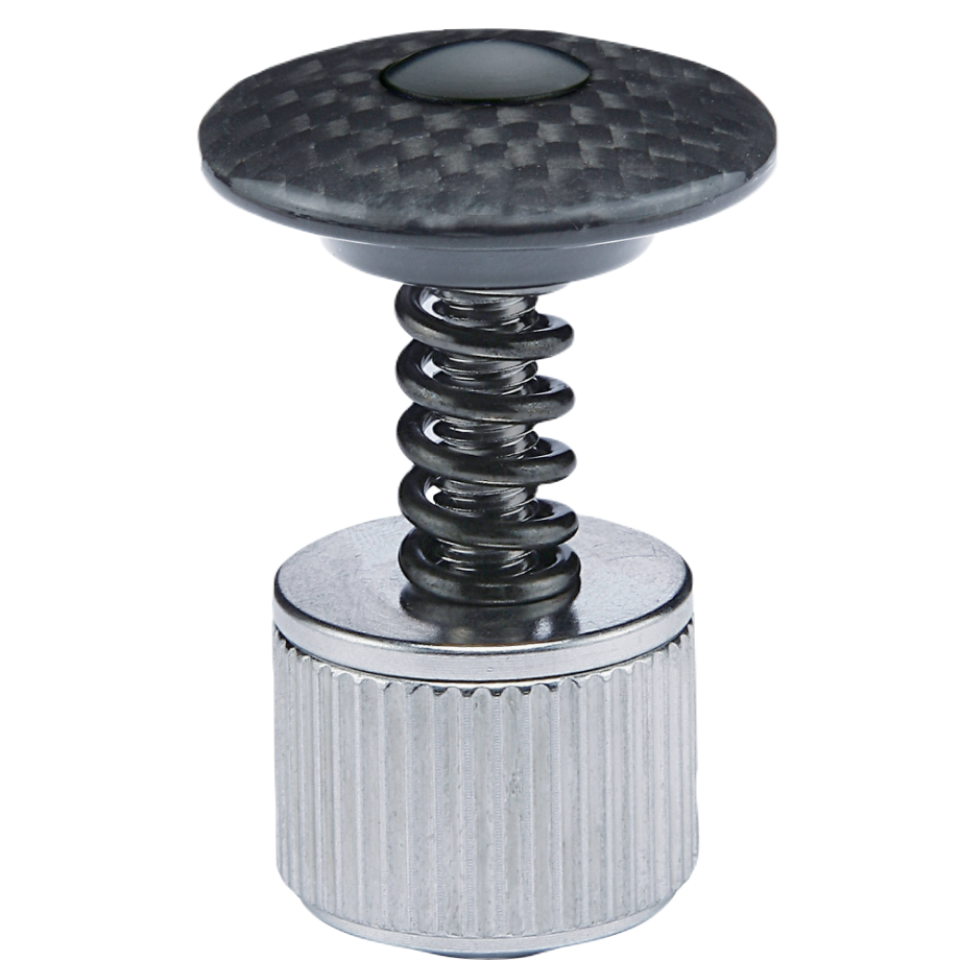

Carbon top cap, w/spring and expansion nut.

• 1-1/8
• 25.4
• double star-nut

Carbon top cap, w/spring and expansion nut.

for VP-A01E / A41AC Series 1-1/8” aluminum

• 1-1/8”
• ALUMINUM
• 10mm/15mm/20mm

• 1-1/8”
• ALUMINUM
• 10mm/15mm/20mm/25mm/30mm

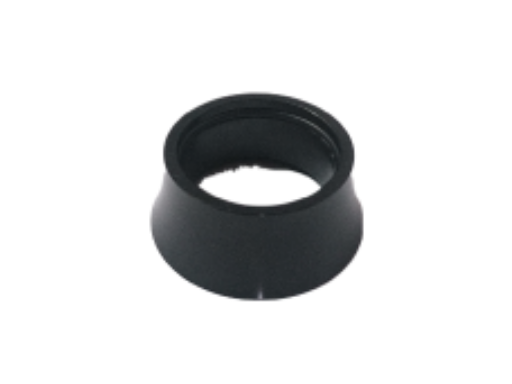

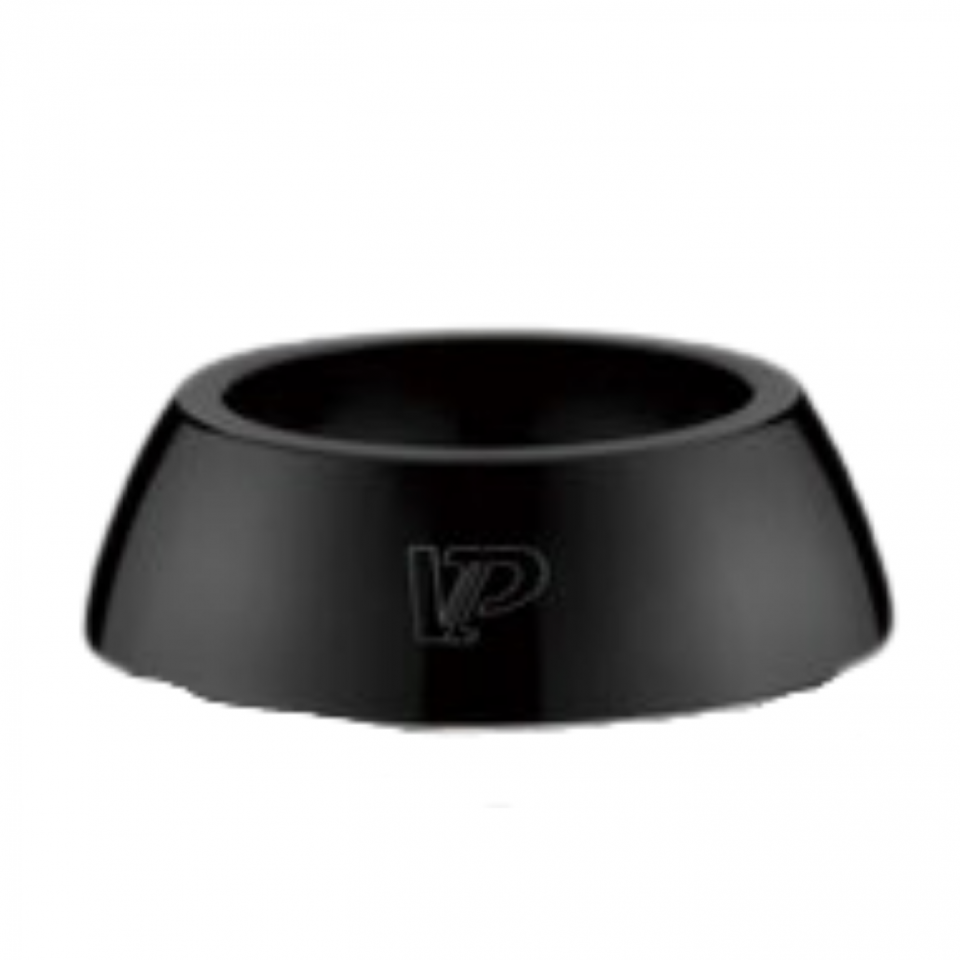

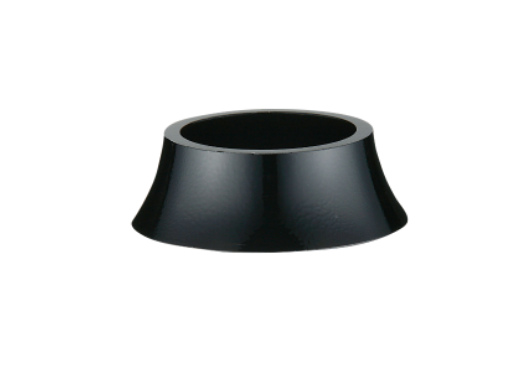

Conical top covers that function as spacers and completely replace the top cover to give a clean functional look are available in heights 15 / 20 / 25 / 30 mm

Conical top covers that function as spacers and completely replace the top cover to give a clean functional look are available in heights 15 / 20 / 25 / 30 mm.
